橡胶脚垫

首页产品中心橡胶脚垫

脚垫金框脚垫橡胶脚垫 EVA泡棉功率晶体导热硅胶片导电泡棉

产品介绍

.Material: Nylon 66 (UL)
·Flame Class: 94V-2/94V-0
.Color: Natural/Black
·Unit:mm
背胶式，可快速将脚垫固定于机壳，粘性佳、不脱落。可依客户指定长、宽、高裁切成各种形状，如方形、圆形。表面可分为平面、斜纹等。

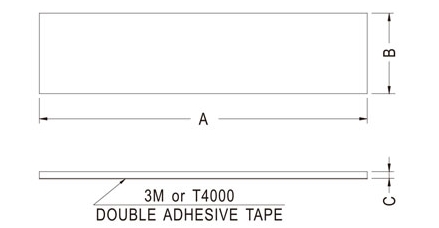

产品参数

型号	A	B	C
SF050435	5	4.5	3.5
SF062313	6	2.3	1.3
SF060425	6	4	2.5
SF652840	6.5	2.8	4
SF652850	6.5	2.8	5
SF070215	7	2	1.5
SF070216	7	2	1.6
SF070304	7	3	0.4
SF073512	7	3.5	1.2
SF070420	7	4	2
SF070620	7	6	2
SF080625	8	6	2.5
SF852530	8.5	2.5	3
SF853520	8.5	3.5	2
SF853525	8.5	3.5	2.5
SF80452	8	4.5	2
SF090855	9.6	8	5.5
SF100616	9.9	6	1.6
SF100119	10	1.9	1.9
SF103512	10	3.5	1.2
SF100409	10	4	0.9
SF100510	10	5	1
SF100520	10	5	2
SF100712	10	7	1.2
SF100825	10	8	2.5
SF100850	10	8	5
SF100730	10.5	7.2	3
SF110830	11.5	8	3
SF118781	11.8	7.8	1
SF120565	12	5	6.5
SF120810	12	8.5	1
SF129515	12	9.5	1.5
SF121530	12	15	3
SF1256535	12.5	6.5	3.5
SF1251008	12.5	10	0.8
SF-1251015	12.5	10	1.5
SF130620	13	6	2
SF130630	13	6	3
SF130735	13	7	3.5
SF130740	13	7	4
SF130855	13.5	8	5.5
SF132525	13	2.5	2.5
SF140430	14	4	3
SF140440	14	4	4
SF150320	15	3.2	2
SF150610	15	6	1
SF151016	15	10	1.6
SF151930	15	1.9	3
SF152530	15	25	3
SF155030	15	50	3
SF1585601	15.8	5.6	1
SF151025	15.8	10	2.5
SF-163530	16	3.5	3
SF160536	16	5	3.6
SF170525	17	5	2.5
SF1724330	17.2	4.3	3
SF180930	18	9	3
SF181010	18	10	1
SF181020	18	10	2
SF195640	19	5.6	4
SF195720	19	5.7	2
SF-197774	19.7	7.7	4
SF197760	19.7	7.7	6
SF190814	19.7	8	1.4
SF190815	19.7	8	1.5
SF-1979723	19.7	9.7	2.3
SF1979725	19.7	9.7	2.5
SF-1979730	19.7	9.7	3
SF-1972015	19.7	20	1.5
SF202515	20	2.5	1.5
SF200410	20	4	1
SF200420	20	4	2
SF200510	20	5	1
SF200515	20	5	1.5
SF200563	20	5	6.3
SF200568	20	5	6.8
SF200725	20	7	2.5
SF201010	20	10	1
SF201015	20	10	1.5
SF201020	20	10	2
SF201035	20	10	3.5
SF201056	20	10	5.6
SF201465	20	14	6.5
SF201515	20	15	1.5
SF200612	20.5	6	1.2
SF210804	21.5	8.6	0.4
SF-221615	22	16	1.5
SF227640	22.6	7.6	4
SF237640	23	7.6	4
SF230610	23.7	6.5	1
SF246011	24.8	6	1.1
SF250535	25	5	3.5
SF250550	25	5	5
SF250760	25	7	6
SF250810	25	8	1
SF250815	25	8	1.5
SF250820	25	8	2
SF251235	25	12	3.5
SF251224	25.4	12.7	2.4
SF251232	25.4	12.7	3.2
SF260510	26.8	5.5	1
SF270830	27	8	3
SF271810	27	18	1
SF271820	27	18	2
SF27183	27	18	3
SF279032	27.5	9	3.2
SF-3064	30	6	4
SF303555	30	3.5	5.5
SF-30709	30	7	0.9
SF3038	30	8	3.8
SF-301120	30	11	2
SF-301140	30	11	4
SF301230	30	12	3
SF301250	30	12	5
SF301525	30	15	2.5
SF302055	30	20	5.5
SF302501	30	25	1
SF30511	30.5	11	7
SF311510	31.5	15.5	1
SF311515	31.5	15.5	1.5
SF3267225	32	6.7	2.25
SF321720	32	17	2
SF321725	32	17	2.5
SF332055	33	20	5.5
SF332385	33.3	23.3	8.5
SF331125	33.5	11.5	2.5
